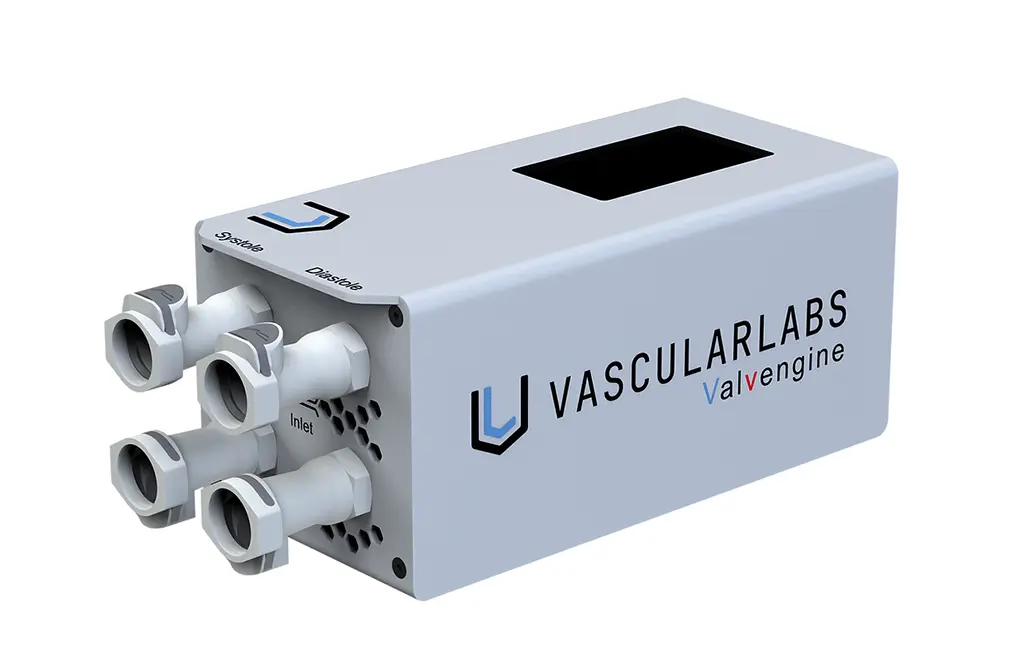

High-Performance Synthetic Heart Valve Actuator for Research and Field Use

Engineered for precision and efficiency, this synthetic heart valve actuator is an ideal solution for researchers and engineers in laboratory environments. Its compact and lightweight design also makes it an excellent tool for mobile demonstrations by sales and marketing professionals.

Technical Specifications:

• Variable Pulsation Rate: 0–200 BPM
• Customizable Pulse Duration: 0–750 ms
• Adjustable Flow Output Strength: 0–100%
• Dual Flow Channels: Two outputs delivering 0–6 L/min (Systolic/Diastolic)
• High Output Pressure: Supports up to 430 mmHg arterial pressure
• Energy Efficient: Operates at 20VDC
• Quick-Connect Couplings: 3/8" valved inlet and outlet
• User Interface: Touchscreen control panel designed for ease of use
• Portable Form Factor: Weighs only 9 lb with compact dimensions (320 x 130 x 120 mm)

The Valvengine includes a two-year limited warranty and is supported by our proactive service plan, which covers routine maintenance and calibration.

Every VALVENGINE device is custom-built to order and typically ships within 2–3 weeks of pre-order. Backed by a two-year limited warranty, the unit is also covered under our preventative maintenance and calibration service plan.

‍Download Data Sheet

‍

‍
