NOMAD and Valvengine systems are custom-built to order and typically ships within 2–3 weeks of pre-order. Backed by a two-year limited warranty, the unit is also covered under our preventative maintenance and calibration service plan.

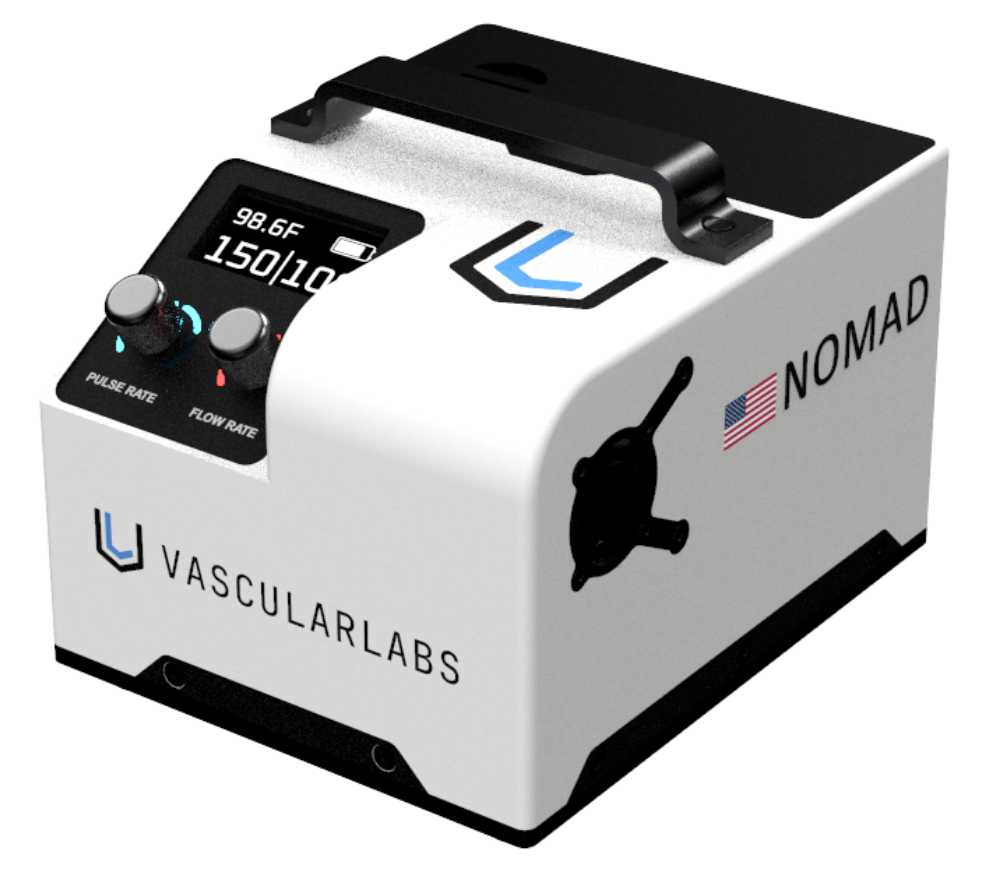

NOMAD

Portable, High-Performance Pulsatile Flow Pump with Centrifugal Technology

NOMAD is a precision-engineered pulsatile flow platform developed for R&D and engineering applications, while remaining compact and adaptable enough for live demonstrations by sales and marketing teams. Created to address the lack of portability in traditional pulsatile pump systems, it provides physiological flow performance in a fully self-contained, travel-friendly, battery-powered unit with up to 8 hours of operation on a single charge.

  • Pulse Rate Range: 0–180 BPM (250 ms pulse duration)
  • Adjustable Flow Output: 0–100% power or up to 5 L/min
  • Integrated 1L Heated Water Reservoir
  • Real-Time Temperature Monitoring
  • Maximum Output Pressure: ~450 mmHg
  • Travel-Compliant LiFePO4 Battery System
  • Dual Valved Ports (CPC PLCD 16006)
  • 12V Operating System with 14.6 VDC/85W Power Supply
  • Size: 22 × 17.6 × 14.3 cm
  • Weight: 2.7 kg (6 lb)

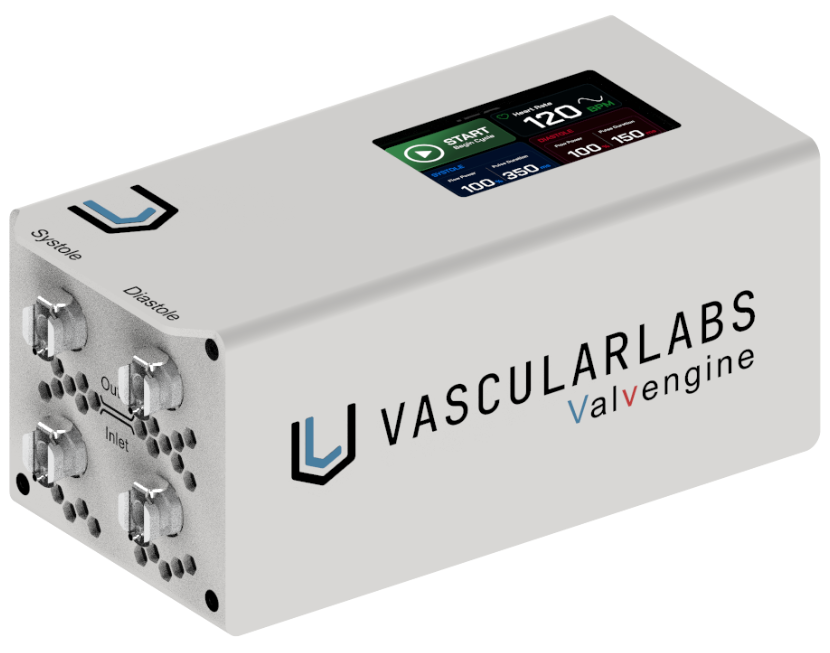

Valvengine

High-Performance Synthetic Heart Valve Actuator for Research and Field Use

Engineered for precision and efficiency, this synthetic heart valve actuator is an ideal solution for researchers and engineers in laboratory environments. Its compact and lightweight design also makes it an excellent tool for mobile demonstrations by sales and marketing professionals.

  • Pulse Range: 0-200 BPM (Cycle or Pulse = Push/Pull)
  • Adjustable SYS/DIA Pulse Duration (150-750 ms)
  • Adjustable Flow Power (0-100% or 0-6L/min)
  • Maximum Output Pressure: ~450 mmHg
  • Intuitive Touchscreen Controls (HMI)
  • 4 Valved Ports (CPC - PLCD 16006)
  • Low Power Rating (20VDC 180W)
  • Size: 22 × 17.6 × 14.3 cm
  • Weight: 2.7 kg (6 lb)
